SGP interlayer laminated tempered toughened safety glass
Color: clear
Glass thickness: 4+4mm, 5+5mm, 6+6mm, 8+8mm, 10+10mm, 12+12mm. 15+15mm, 19+19mm
SGP film thick: 0.89mm, 1.52mm, 1.9mm, 2.28mm etc.
Size: custom size
Processing: polish edges, drill holes, cut notches, safety corner, print logo etc.
Applications: window, door, railing, partition, canopy, canopy, curtain wall etc.
Sample: avaiable
Specifications
| Product | SGP tempered laminated glass |
| Color | clear |
| Glass thickness | 4+4mm, 5+5mm, 6+6mm, 8+8mm, 10+10mm, 12+12mm. 15+15mm, 19+19mm |
| SGP film thick | 0.89mm, 1.52mm, 1.9mm, 2.28mm etc. |
| Size | custom size |
| Processing | polish edges, drill holes, cut notches, safety corner, print logo etc. |
| Applications | window, door, railing, partition, canopy, canopy, curtain wall etc. |
| Sample | avaiable |
SGP Tempered Laminated Glass
SGP film are five times stronger and up to 100 times stiffer than conventional laminating materials. With this kind of strength, SGP film help create stronger laminated glass that protects against storms, impacts and more powerful blasts.
Besides its strength, SGP retains its outstanding clarity, even after years of service, to provide superior, lasting beauty for laminated glass.
SGP interlayers are used in laminated glass to help architects and glazed building system manufacturers meet society’s need for security, energy efficiency, safety and maintenance ease. It helps builders do more with less, creating innovative new spaces, while providing greater protection for building occupants.
SGP, PVB, EVA, What Is The Difference
PVB is the most common interlayer used around the world in laminated glass make ups. Its optical clarity, flexibility and ability to adhere to many surfaces make it a primary interlayer for glass manufacturers.
Benefits:
99% filtering of harmful UV rays
Available in a variety of thicknesses
Acoustic performance
Customisable- mix and match PVB interlayers
Cost-effective laminate
Common Applications:
Residential Doors & Windows
Internal Glass Balustrades
Overhead Glazing – Skylights or Canopies
Internal Glass Partitioning
Offices, Board Rooms or Meeting Rooms

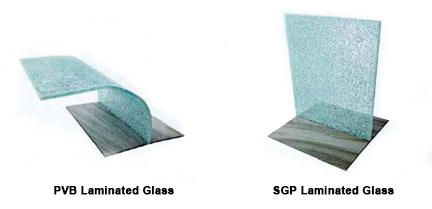

SGP is 100 times more rigid and 5 times more resistant to tearing when comparing to PVB. When frameless, laminated glass applications are required, the SGP interlayer is a superior selection due to its ability to withstand weather conditions and resist moisture where other laminates cannot.
Benefits:
Can be used in external, exposed edge applications
Superior edge stability
Offers the highest level of structural performance
Anti hurricane
Common Applications:
Internal & External Balustrades
Floors, Stairs, and Landing Panels
Facades
Overhead Glazing – Skylights or Canopies
Building wherw are near by the sea

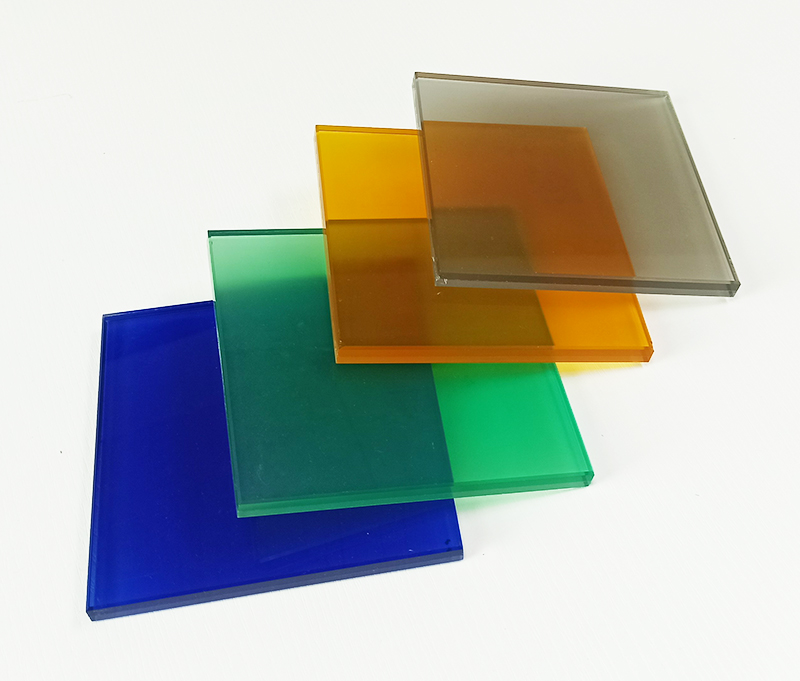

EVA adheres to glass and other materials better than PVB and is available in many colours making it the ultimate selection when design innovations are a requirement. EVA allows distinctive products such as fabrics, paper, decorative wire mesh and printed PET films in the glass build up.
Benefits:
Can be used in external, exposed edge applications
Customisable- add materials in the build up, and custom colors
Common Applications:
Switch Glass / Smart Glass
Decorative Laminated Glass
Solar Panels
